Material, Specification and Selection Guide for Conveyor Roller

Conveyor Idler Roller: Types, Sizes, Selection Guide with C3 Clearance Deep Groove Ball Bearing

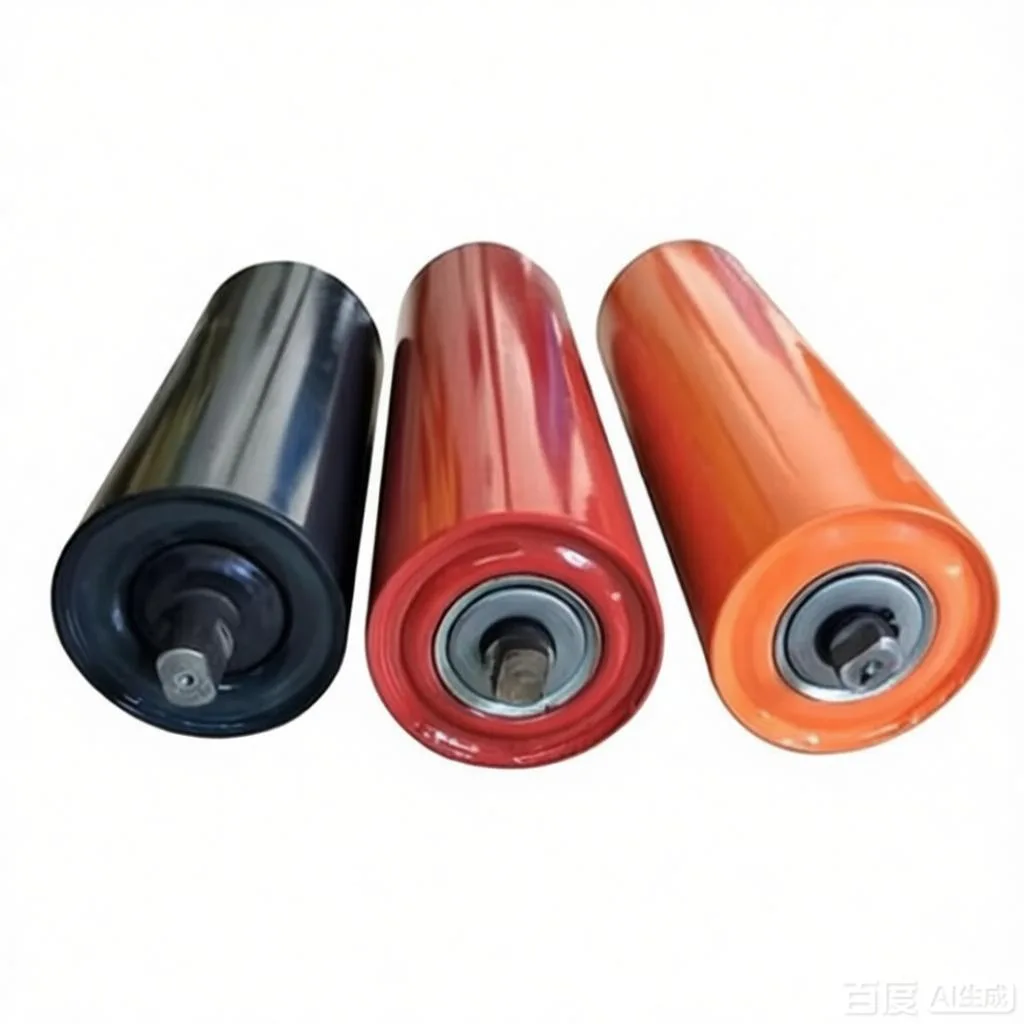

A conveyor idler roller is the core wear-resistant and load-bearing component of belt conveyors, widely used in mining, coal mines, ports, power plants, sand and gravel plants, building materials, and grain transportation industries. High-quality belt conveyor idler rollers feature wear and corrosion resistance, low noise, impact resistance, and stable operation. Equipped with C3 clearance deep groove ball bearings, these rollers greatly improve the continuous operation stability of conveyors and effectively reduce equipment failure rates and later maintenance costs.

Compiled by a professional conveyor idler roller manufacturer, this article comprehensively introduces the classification, material characteristics, standard specifications, and industrial selection standards of conveyor idlers, as well as the core advantages of C3 clearance bearing idler rollers, helping global buyers quickly select cost-effective and durable conveyor idlers.

1. What Is a Conveyor Idler Roller & Its Core Functions

Conveyor idler rollers are designed to support conveyor belts and bulk materials. They reduce belt operating resistance through low-friction rotation and avoid common equipment problems such as belt stretching, wear, deviation, and tearing.

In harsh industrial working conditions with heavy loads, dense dust, high humidity, strong impact, and 24-hour non-stop operation, the service life and performance of idler rollers mainly depend on three key factors: sealing performance, pipe wall material, and bearing precision.

Standard bearings are prone to overheating, locking, jamming, and abnormal noise under high-temperature and heavy-load working conditions. In contrast, industrial idler rollers upgraded with C3 clearance deep groove ball bearings are highly adapted to heavy-duty mining conditions and have become the mainstream upgrade solution for industrial and mining enterprises worldwide.

2. Common Types of Conveyor Idler Rollers & Application Scenarios

2.1 Flat Idler Roller

As a universal flat belt idler, it features low resistance and stable operation. It is mainly used for the return section support of conveyors, suitable for light-duty transportation of grain, powder materials, and lightweight building materials.

2.2 Trough Idler Roller

The most widely used 3-roll trough idler roller in the mining industry. It boasts large loading capacity and anti-spilling performance with strong load-bearing capacity, extensively applied in heavy-duty conveying equipment for coal mines, ores, sand and gravel, and stone materials.

2.3 Tapered Self-Aligning Idler Roller

Specially designed to solve belt deviation problems. It can automatically correct the running track of conveyor belts, ideal for long-distance, high-speed, and high-capacity belt conveyors. It effectively reduces edge wear and tearing loss of conveyor belts.

2.4 Impact Idler Roller

A special idler equipped with rubber buffer rings for the feeding and blanking section of conveyors. It has excellent anti-impact performance, protecting conveyor belts and frames from damage caused by falling bulk ores and raw coal, perfectly adapting to heavy-impact blanking working conditions.

3. Main Materials of Conveyor Idler Rollers (Wear Resistance & Corrosion Resistance)

3.1 SS41 Carbon Steel Idler Roller (Recommended)

Made of industrial-grade universal SS41 steel material, it has thick pipe walls, high rigidity, and strong deformation resistance. After rust removal, baking varnish, and anti-corrosion treatment, it features excellent wear resistance and rust resistance. It is the most cost-effective choice for most open-air, dusty, and humid industrial and mining working conditions.

3.2 Polymer Nylon Idler Roller

It has the advantages of silent operation, corrosion resistance, no material adhesion, and light weight. Suitable for chemical industry, humid and corrosive environments, it is widely used in light-duty conveyor production lines.

3.3 Ceramic Wear-Resistant Idler Roller

Adopting high-temperature sintered ceramic surface technology, it is characterized by ultra-high wear resistance, high temperature resistance, and anti-sticking performance. It is the preferred choice for cement plants and metallurgical mines with severe wear and dense dust.

4. Core Upgrade Configuration: C3 Clearance Deep Groove Ball Bearing (Industrial High Configuration)

All our industrial conveyor idler rollers are equipped with standard C3 clearance deep groove ball bearings. Different from standard clearance bearings, C3 clearance bearings are professionally designed for harsh belt conveyor working conditions.

Core Advantages of C3 Clearance Bearings

1. Larger Clearance & Thermal Expansion Compensation
   Bearings generate high temperatures during continuous heavy-duty operation in mines. Standard bearings are easy to lock due to thermal expansion. C3 clearance bearings reserve sufficient expansion space to completely avoid jamming and locking failures.
2. Strong Vibration & Impact Resistance
   Belt conveyors face frequent start-stop, material falling impact, and belt deviation vibration. C3 clearance bearings have sufficient operating margin to resist impact and vibration, greatly extending the service life of idler rollers.
3. Flexible Operation, Low Resistance & Energy Saving
   The bearings operate smoothly without stagnation and abnormal noise, reducing conveyor belt friction resistance and realizing low-energy and silent operation of the whole equipment.
4. Adapt to 24-Hour Non-Stop Production
   For non-stop working scenarios in coal mines, sand and gravel plants, and ports, idler rollers with C3 clearance bearings maintain ultra-high stability with extremely low failure rates.

Matched with our multi-layer labyrinth seal and double dust-proof & waterproof structure, the bearings are effectively isolated from dust, sediment, and rainwater, keeping internal lubrication clean and greatly improving the durability of conveyor idlers.

5. Standard Specifications of Conveyor Idler Rollers (Customizable Non-Standard Sizes)

Standard Pipe Diameter

89mm, 108mm, 133mm, 159mm, 194mm

Matching Belt Width

500mm, 650mm, 800mm, 1000mm, 1200mm, 1400mm

Custom Length

200mm – 1600mm (customizable)

Standard Core Configuration

All idler rollers are fitted with C3 clearance deep groove ball bearings

All finished idler rollers pass strict factory tests including concentricity detection, load-bearing test, and waterproof sealing test. We support bulk foreign trade orders, engineering supporting projects, and equipment replacement and maintenance services.

6. Industrial Idler Roller Selection Guide (Avoid Purchase Mistakes)
7. Heavy-duty mining, high-temperature & continuous operation: Priority to choose SS41 carbon steel idler rollers with C3 clearance bearings
8. Conveyor blanking port position: Must install impact idler rollers
9. Frequent belt deviation: Equip tapered self-aligning idler rollers
10. Corrosive, humid & light-duty working conditions: Select polymer nylon idler rollers
11. High-wear powder material working conditions: Prefer ceramic wear-resistant idler rollers
12. Core Advantages of Our C3 Clearance Bearing Idler Rollers
13. Direct factory supply: No middlemen, sufficient spot inventory, fast delivery, supporting FOB and CIF foreign trade shipping terms
14. Standard C3 clearance bearing configuration: The service life is 2-3 times longer than ordinary idler rollers, with excellent heavy-load resistance and anti-locking performance
15. Dust-proof & waterproof sealing: Multi-layer labyrinth sealing design, fully adapted to harsh mining working conditions
16. Customization service available: Support non-standard length, pipe diameter, rubber coating, galvanizing, and ceramic process customization
17. Strict factory inspection: Stable product quality, suitable for mining, port and engineering projects at home and abroad
18. Frequently Asked Questions (FAQ)

Q1: What is a C3 clearance bearing idler roller?

A C3 clearance bearing idler roller is equipped with deep groove ball bearings with increased C3 clearance. It is specially developed for high-temperature, heavy-load and high-vibration industrial conditions, solving the common problems of overheating locking and rapid damage of standard bearing idlers, becoming the optimal configuration for mining conveyor idlers.

Q2: Why do mining idler rollers adopt C3 clearance bearings?

Mining conveyors operate 24 hours a day with heavy loads and strong vibration, leading to high bearing temperature. Standard bearings will have reduced internal clearance after thermal expansion and are easy to lock and damage. C3 clearance bearings have high fault tolerance, more stable operation and longer service life under harsh mining conditions.

Q3: How to solve conveyor belt deviation?

Belt deviation can be effectively solved by replacing tapered self-aligning idler rollers. Matching with C3 clearance bearing idlers can improve the overall operation stability and reduce belt wear.

Q4: Do you support foreign trade bulk customization?

Yes. We have long-term export experience in Southeast Asia, Africa, the Middle East and other overseas markets. We can provide export packaging, non-standard size customization, special process production and bulk quotation services.

Conclusion

High-quality mining conveyor idler rollers and belt conveyor idler rollers must adapt to harsh working conditions of heavy load, high temperature and dense dust. Equipped with C3 clearance deep groove ball bearings is the key upgrade to improve idler durability and reduce equipment failure rates.

As a professional manufacturer, Hebei Zhenxing Conveyor Machinery supplies C3 clearance bearing idler rollers, trough idlers, tapered idlers and impact idlers with complete specifications and stable quality. We support customized production and bulk foreign trade orders. Welcome global customers to consult for model selection and real-time quotation.
